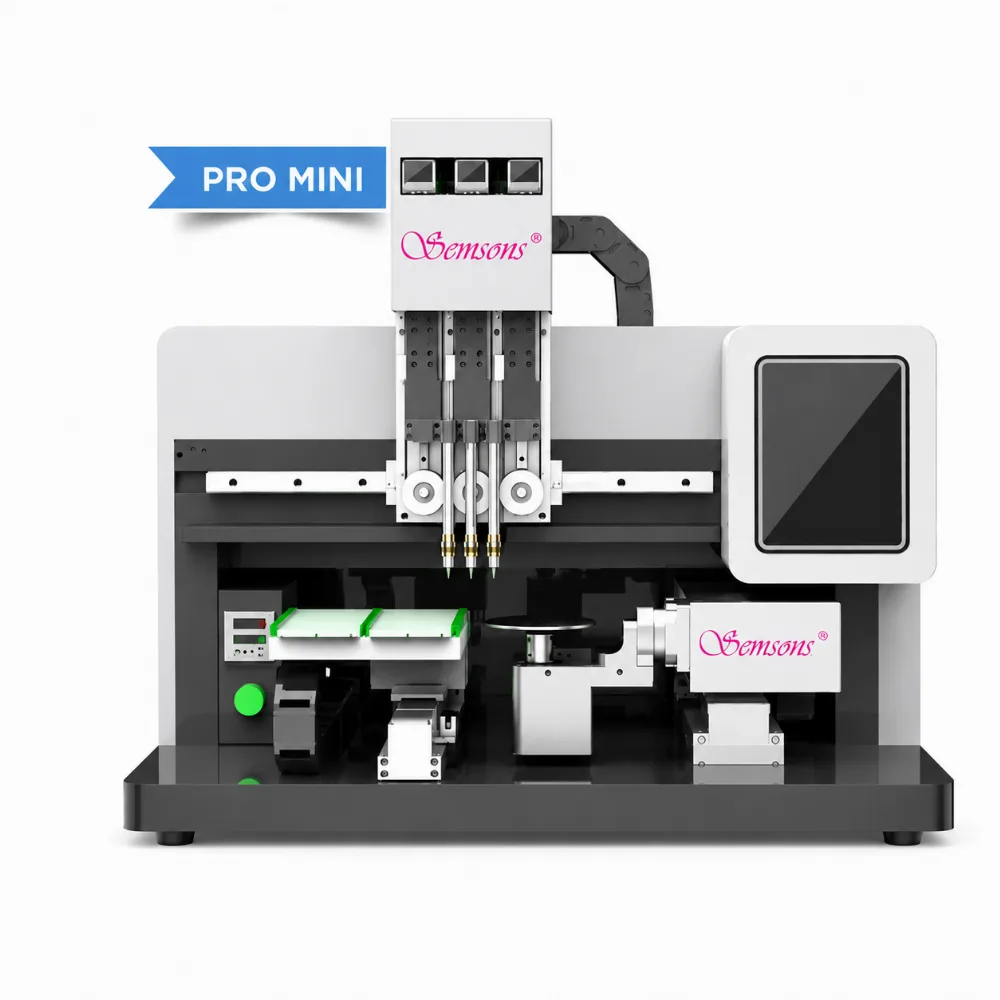

Diamond Wax Setting Machines · PRO MINI
Also listed as Mini Pro
Compact benchtop machine that sets up to 10,000 stones per hour and does the work of 10 skilled setters — in the space of a normal workbench.
Ideal for designer studios, small workshops, training institutes and anyone starting with automatic setting. Installation and operator training included.
WhatsApp +91 98216 12340 · Semsons Tech, since 1978.
Machine price ₹10,51,000
Installation and operator training included. Reserve one with a booking amount of ₹10,000 — that is a deposit, not the price. The final figure is confirmed in writing on your quotation, per configuration and destination.
Overview
One machine does the job of 10 workers — and it fits on your bench.
The Pro Mini is the easiest way to bring automatic stone setting into your workshop. It sets up to 10,000 stones per hour with the same accuracy as a large production machine, but it is small enough to sit on a normal workbench and runs on ordinary single-phase power. If you are facing setter shortage, rising wages, or quality that changes from piece to piece, this is where automation starts.
The Pro Mini is built to be simple. Your operator learns it in roughly one hour. Everything runs from a touchscreen — pick the design, load the wax, press start. No programming knowledge and no technical background needed. Our engineers install it in your workshop and train your team until they are running it on their own.
| Feature | What You Get |
|---|---|
| ⚡ Up to 10,000 Stones / Hour | High output from a machine that fits on a workbench |
| 👥 Does 10 Workers' Job | Solves setter shortage without hiring and training more people |
| 📏 Compact Size | 711 × 660 × 736 mm, 135 kg — no factory floor needed |
| 🔌 Normal Power Supply | Single-phase 220V, only 1.3 kW — installs almost anywhere |
| 🎯 ±0.02 mm Accuracy | Accurate and stable — the finished product will not fall off |
| 🔄 Five-Axis Workbench | Handles curved, complex and detailed jewellery designs |
| 🤖 Intelligent Identification | Recognises stones automatically and places them correctly |
| 🎨 Multi Colours & Sizes | Works with different colours and stone sizes for varied designs |
| 🛡️ Wax Protection | Flexible diamond setting — will not damage the mould |
| 🖥️ Teach Fast | About one hour of quick teaching and your operator is running it |
| ⚙️ 3 Suction Nozzles | Reliable stone pick-up and placement, piece after piece |
| 🛠️ Quick Support | Genuine spare parts and service across 16+ Indian cities |
Most workshops delay automation because the big machines need floor space, three-phase power and a large investment. The Pro Mini removes all three problems. It sits on a bench, runs on the same power point as your other equipment, and still gives you the accuracy and repeatability of automatic setting. For studios, small manufacturers and training institutes, this is the practical entry into automation.
| Parameter | Specification |
|---|---|
| Equipment Name | Mini Automatic Diamond Setting Machine |
| Equipment Model | Pro Mini (Single Station) |
| Stone Setting Speed | Up to 10,000 stones per hour |
| Labour Replaced | Does the work of 10 skilled setters |
| Workbench Structure | Five-axis linkage workbench |
| Spot Drilling Accuracy | ±0.02 mm |
| Suction Nozzles | 3 suction nozzles |
| Fixing Method of Drill Head | Embedded |
| Control System | Industrial five-axis motion controller |
| Main Operation System | Self-research system of Semsons Tech |
| Drive System | High-end servo |
| Transmission Model | High-precision screw guide |
| Effective Travel (X/Y/Z/A/C) | 300 × 250 × 120 mm / +150–90 / 360 |
| Working Power Supply | Single phase, 220V, 50Hz / 60Hz |
| Rated Power | 1.3 kW |
| Working Air Pressure | 80 psi (0.4 MPa) |
| Weight | 135 kg |
| Dimensions | 711 × 660 × 736 mm |
| Warranty | 12 months, extendable |
On-site installation and operator training included. EMI financing available through partner banks. Delivery in 21 days; dispatch from Mumbai. 12-month warranty, extendable with AMC. Genuine spare parts with quick support.
Sales: WhatsApp +91 98216 12340 | Wholesale: WhatsApp +91 80823 38010
Semsons Tech — Where Quality Speaks For Us. Since 1978.
Specifications
19 parameters, as published by our store.
The range
Sets 12,000 stones per hour across both stations, giving you 20% more production than a conventional setting machine.

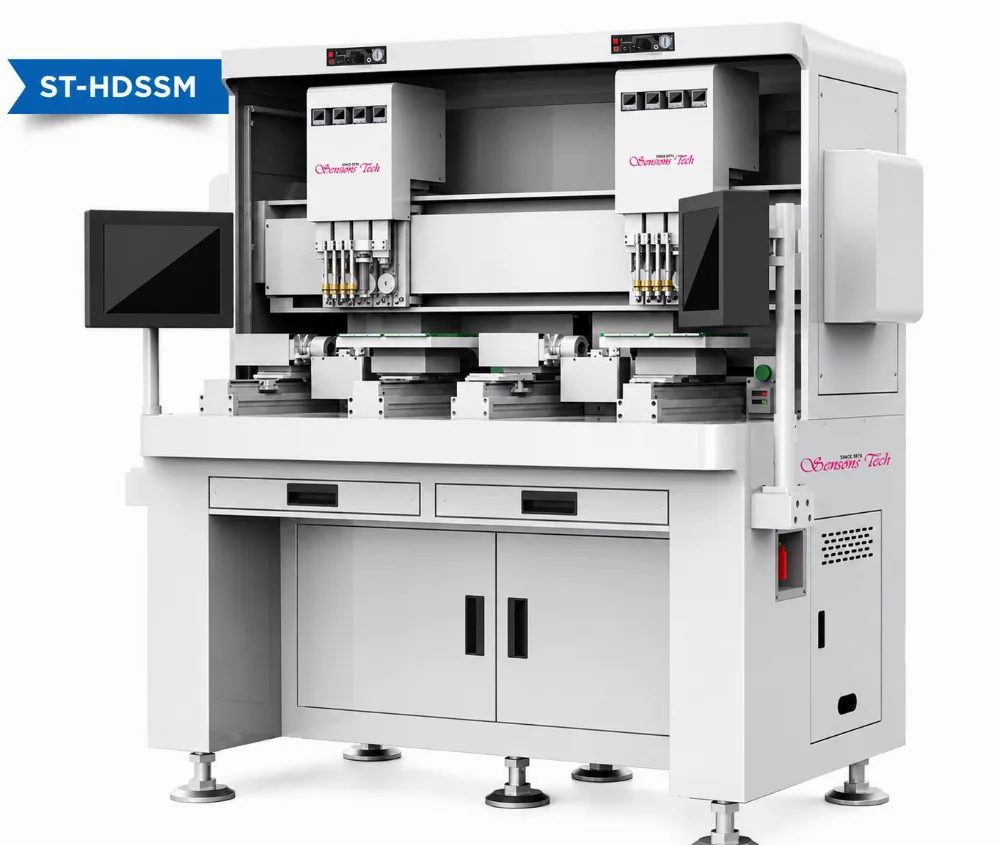

Eight nozzles across dual heads and dual rotary worktables — the highest-throughput setting machine we build.

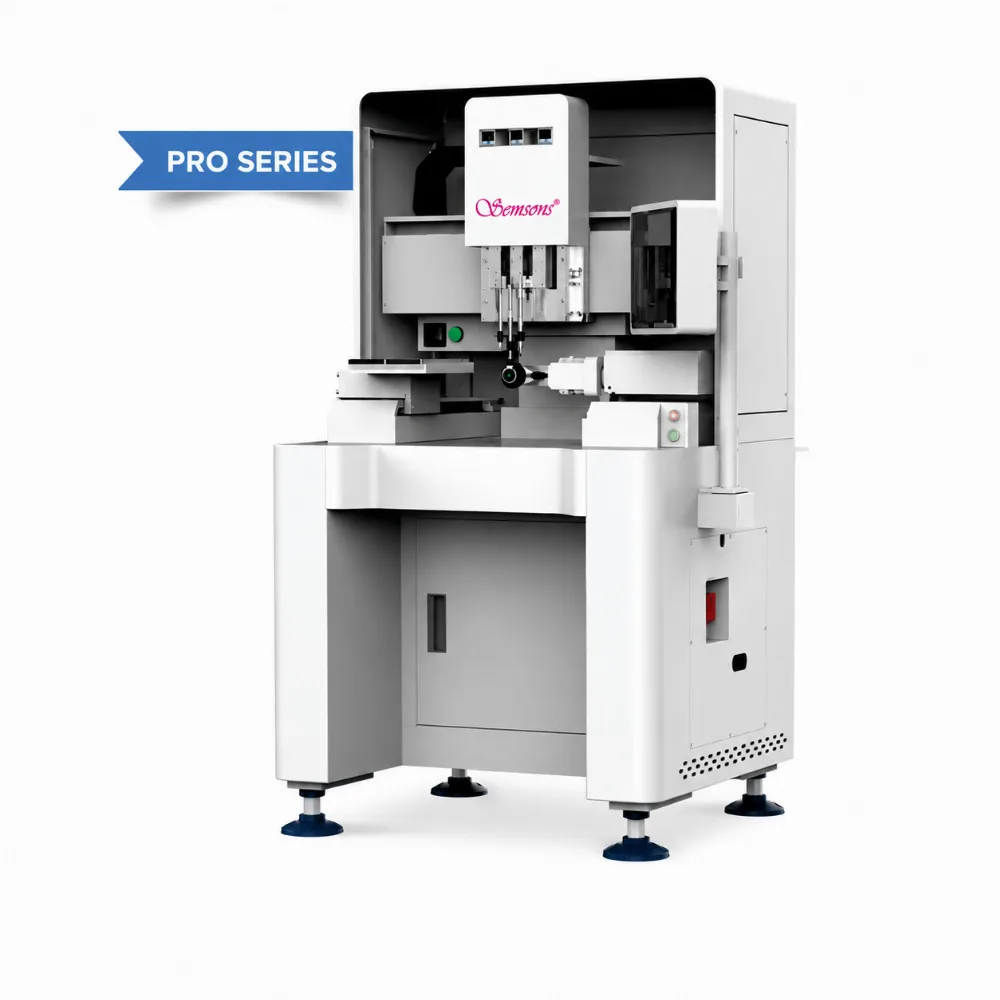

The full-size single-station platform, between the Mini Pro and the double-station machines.
Questions
Straight answers from the people who install and service these machines. Anything not covered here, ask us on the form below.
About one hour. Everything runs from a touchscreen — pick the design, load the wax, press start. No technical background needed. We train your operator on site until they can run it alone.
Very little. The machine is 711 × 660 × 736 mm, so it sits on a normal workbench or its own small table.
Ordinary single-phase 220V at 50Hz or 60Hz, drawing only 1.3 kW. No three-phase connection required.
Yes. The machine needs a compressed air supply at 80 psi (0.4 MPa). Most workshops already have a suitable compressor — our team will confirm yours during installation.
One Pro Mini does the work of 10 skilled setters, with the same quality on every piece.
No. The flexible diamond setting system is designed for wax protection, so the mould stays undamaged during setting.
Yes. The five-axis linkage workbench moves in five directions, so curved, detailed and multi-stone designs are handled properly, not just flat simple pieces.
Yes. Accurate and stable setting to ±0.02 mm means the finished product holds — stones will not fall off.

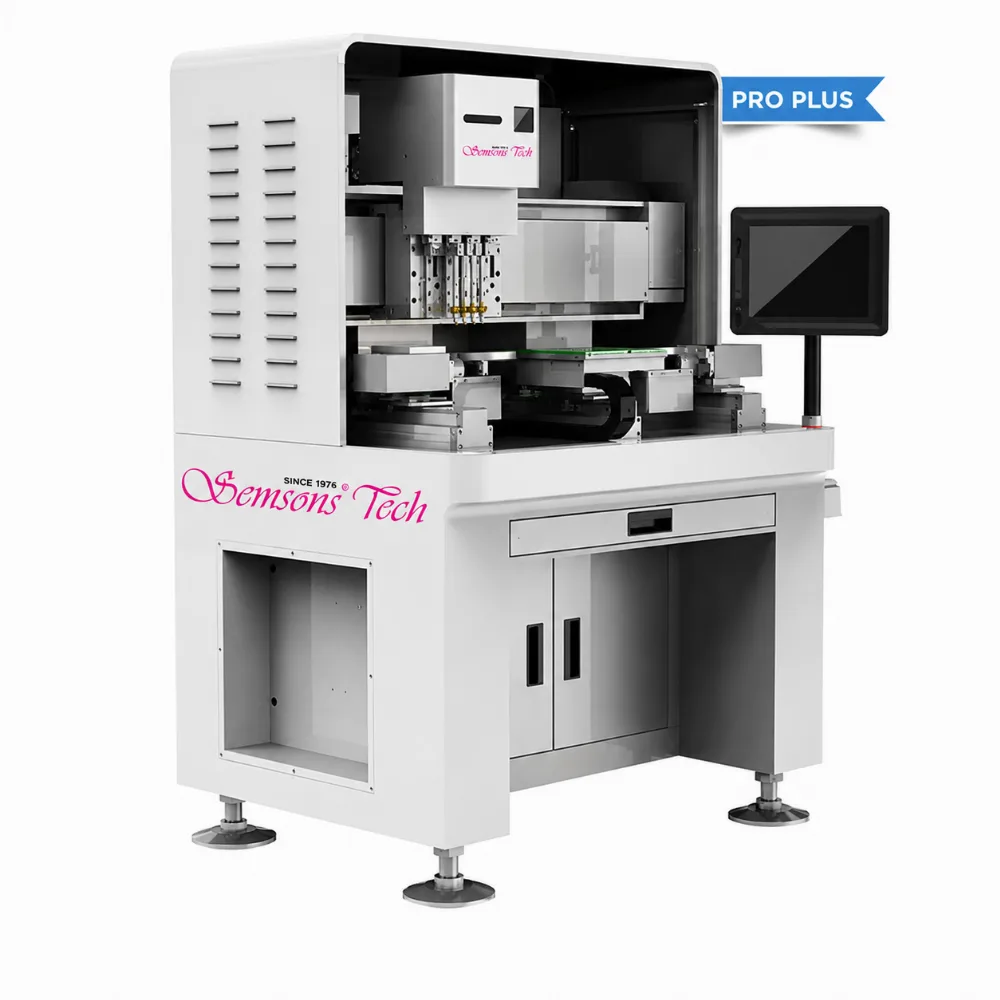

The Pro Mini is a single-station benchtop machine — up to 10,000 stones/hour, 135 kg, replaces 10 setters. The X4 Pro Plus is the double-station production machine — 12,000 stones/hour across both stations, 850 kg, replaces 10–12 setters, with 4-tray feeding for long continuous runs. Choose the Pro Mini for studio and small-workshop production, the X4 Pro Plus for factory-floor volume.
Yes — it handles multiple colours and stone sizes for varied jewellery designs.
On-site installation, operator training, quick support, and genuine spare parts. Service across 16+ Indian cities.
Yes — EMI financing is available through our partner banks. Talk to our team for the current options.
The Pro Mini is catalogue-rated at Up to 10,000 stones per hour. Actual output on your floor depends on your design, stone size and wax quality, which is why we confirm a realistic figure against your own samples before quoting.
Yes. We commission the machine on your floor and train your operators on your own material and your own designs rather than a demonstration sample. Semsons Tech has served the diamond and jewellery industry since 1978, and on our setting machines the control system is self-developed, so support does not depend on a third party abroad.
The Pro Mini is priced at ₹10,51,000. Installation and operator training included. You can reserve one with a booking amount of ₹10,000; that is a deposit against the machine, not the price of it. Voltage, tooling, spares package and shipping can still move the total, which is why the final number is confirmed in writing on your quotation. Send us your requirement through the form on this page.
Quotation
Tell us your designs, stone sizes and target output. We reply within one working day with the right configuration and a written quotation.
Your enquiry reaches our team tagged to this exact model, so you will not be sent a generic brochure.
