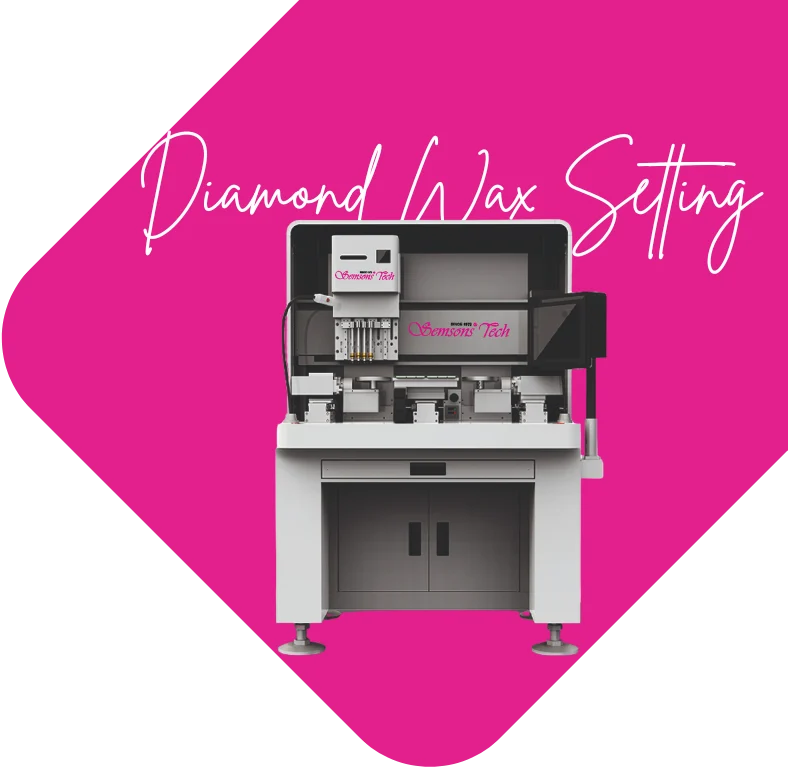

Best Diamond Wax Setting Machine

It depends on the model. The Mini Pro single-station machine is catalogue-rated at a maximum of 10,000 stones per hour with 3 suction nozzles. The ST-3D 1000 double-station PRO PLUS and the ST-HDSSM double-head machine are both rated at 18,000–20,000 diamonds per hour, with 4 and 8 nozzles respectively. Note that our printed catalogue also carries a headline claim of "up to 15,000 stones per hour" for the ST-3D 1000 alongside the 18,000–20,000 figure in its parameter table; we publish both source figures rather than quietly reconciling them, and we confirm the exact rating for your wax and stone mix before you order.

Yes. The machines handle channel setting, push setting, micro setting and prong setting, across flat, round, Bali and pendant design types. In practice that covers mangal sutra, necklaces, haaram, chokers, bangles, payals, waist belts, armlets, bracelets, finger rings (vichiya) and para (studded balls) — the full range of Indian jewellery — as well as Western ring and pendant work. Send us your wax samples and we will confirm compatibility against your actual designs before you commit.

Every automatic setting machine in the range is specified at ±0.02 mm spot drilling accuracy. That figure is delivered by an industrial-grade five-axis motion controller, high-end servo drives and high-precision screw guide transmission — the same motion architecture across the Mini Pro, ST-3D 1000 and ST-HDSSM.

A single-station machine such as the Mini Pro works one plate at a time on a five-axis linkage workbench, at up to 10,000 stones per hour, in a 135 kg, 711 × 660 × 736 mm footprint on single-phase 220V. A double-station machine such as the ST-3D 1000 uses a planar double worktable with a double rotating axis, so one station can be loaded while the other is setting. That lifts the rated speed to 18,000–20,000 diamonds per hour, at 850 kg and 950 × 750 × 1400 mm. The ST-HDSSM goes further again with dual heads and 8 nozzles. The practical difference is not just speed — it is how much of the operator's time is spent waiting.

For volume production, automation changes the economics. Our catalogue states that one Mini Pro does approximately the job of 10 workers, and that the ST-3D 1000 and ST-HDSSM each do approximately the job of 15 workers. Beyond headcount, an automatic machine holds ±0.02 mm placement accuracy on the ten-thousandth piece exactly as on the first, which is difficult to sustain manually across a shift. Manual setting still has its place for one-off, highly irregular or repair work. Most of our customers do not replace their setters — they move them onto micro setting and finishing, where skilled hands matter most, and let the machine absorb the repetitive volume.

The ST-HDSSM double station double head machine. It runs 8 suction nozzles across dual flat worktables and dual rotary axis worktables at 18,000–20,000 diamonds per hour, on a 3.5 kW supply at 90 psi (0.6 MPa) working air pressure. If your floor space or power supply is constrained, the ST-3D 1000 delivers the same rated speed from 4 nozzles at 2.5 kW and 80 psi in a narrower 950 mm cabinet.

A stable power supply, clean compressed air and a dry environment. The Mini Pro runs on single-phase 220V 50/60Hz at 1.3 kW; the ST-3D 1000 on AC220V 50Hz at 2.5 kW; the ST-HDSSM on AC220V 50Hz at 3.5 kW. Working air pressure is 80 psi (0.4 MPa) for the Mini Pro and ST-3D 1000, and 90 psi (0.6 MPa) for the ST-HDSSM — which is why a compressor and air dryer sit alongside the setting machine at stage four of a factory build.

Yes. Our catalogue states export to 34+ countries, supported by 40+ distributors and 450+ dealers, with locations listed in Mumbai, Rajkot, Surat, Ahmedabad, Bangalore, Coimbatore, Kerala, Indore, Kolkata, Dubai, New York, Canada and Hong Kong. Tell us your destination and we will confirm shipping, voltage configuration and local support before quoting.
