Diamond Sorting Tray for Automatic Stone Setting Machines - DSSMT & SSMWT, 0.8–3.0 mm
Diamond Sorting Trays DSSMT & SSMWT - for Semsons Automatic Stone Setting Machines
The tray holds the sorted stones for the suction nozzle to pick. Choose the model for the size of the round stones you set, from 0.8 mm to 3.0 mm.
✔ DSSMT-01 / DSSMT-01L - 0.8 to 1.2 mm stones
✔ DSSMT-02 / SSMWT-02 - 1.3 to 1.6 mm stones
✔ DSSMT-03 / SSMWT-03 - 1.7 to 1.9 mm stones
✔ DSSMT-04 / SSMWT-04 - 2.0 to 2.5 mm, deep pocket
✔ DSSMT-05 / SSMWT-05 - 2.5 to 3.0 mm, deep pocket
✔ Fits - X4 Pro Plus, Pro Mini and ST-HDSSM machines
Sold per tray, one price for every model. Same-day dispatch, free delivery anywhere in India.
WhatsApp +91 98216 12340 · Semsons Tech, since 1978.
Price ₹7,800 incl. GST ₹6,610.17 before GST at 18%. As listed in our online store; delivery is confirmed at checkout.
- Genuine Semsons Tech part, sold by the manufacturer
- Ordered through our official online store
- Sales support since 1978 · WhatsApp +91 98216 12340
About this product
Everything the shop says about it
Diamond Sorting Trays for Automatic Stone Setting Machines
Ten tray models for round stones from 0.8 mm to 3.0 mm.
The sorting tray is a machined plate with one pocket for each stone. You fill it with stones of one size, place it on the machine, and the suction nozzle picks the stones from the pockets one by one. Each model is cut for one band of stone sizes and pairs with a matching nozzle.
Choose Your Tray
- Measure your stone. Take the diameter of the round stone in millimetres.
- Pick the format. DSSMT trays hold the most stones per fill. Wide-format trays (DSSMT-01L and SSMWT) are wider and shorter, and hold fewer.
- Order the model on that row, and the nozzle beside it.
| Model | Format | Stone size | Grid | Stones per fill | Nozzle |
|---|---|---|---|---|---|

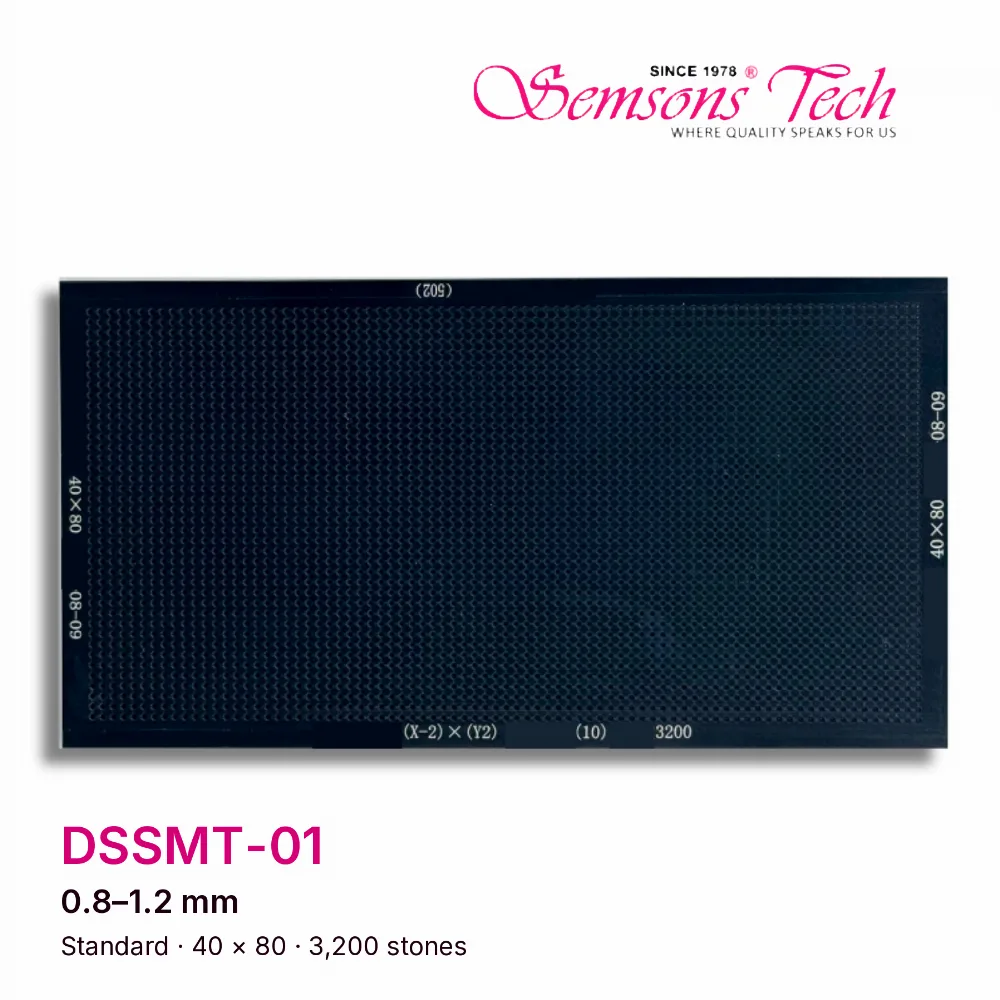

| DSSMT-01 | Standard | 0.8 – 1.2 mm | 40 × 80 | 3,200 | 502 / 502B |

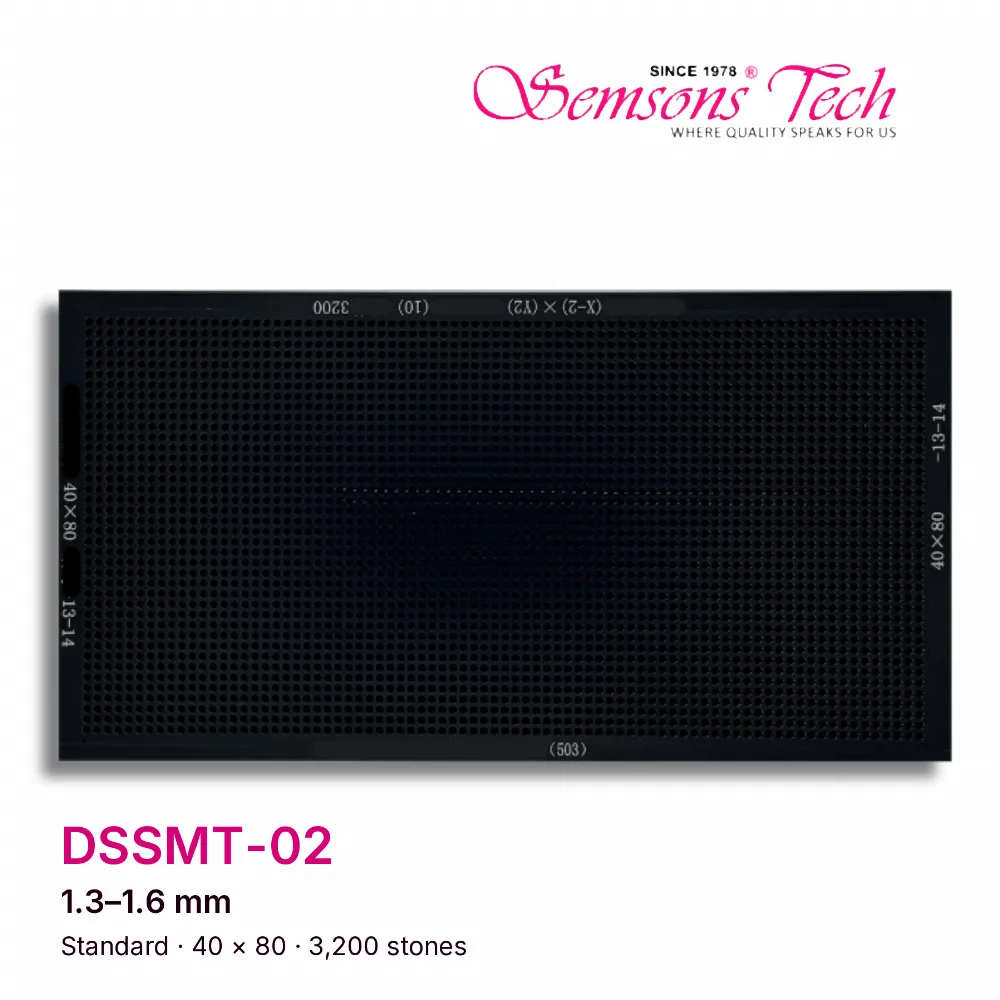

| DSSMT-02 | Standard | 1.3 – 1.6 mm | 40 × 80 | 3,200 | 503 / 503B |

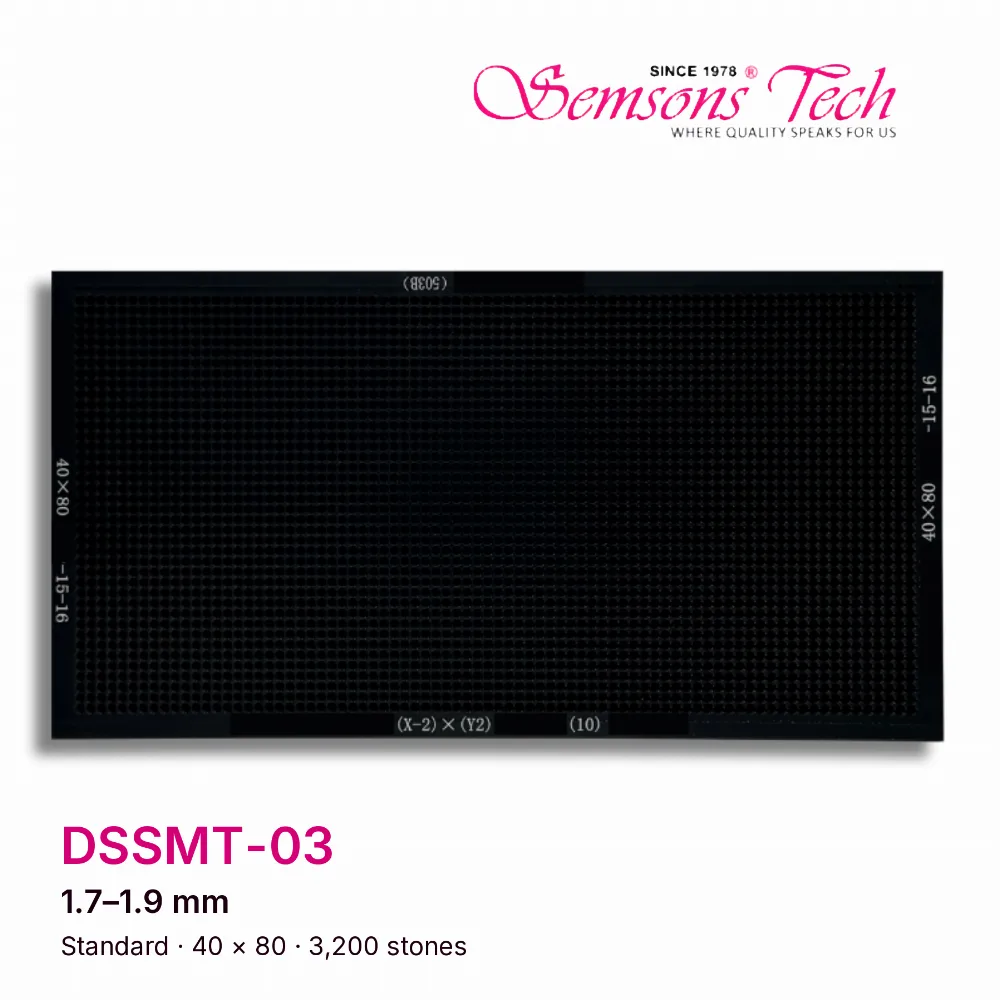

| DSSMT-03 | Standard | 1.7 – 1.9 mm | 40 × 80 | 3,200 | 503B |

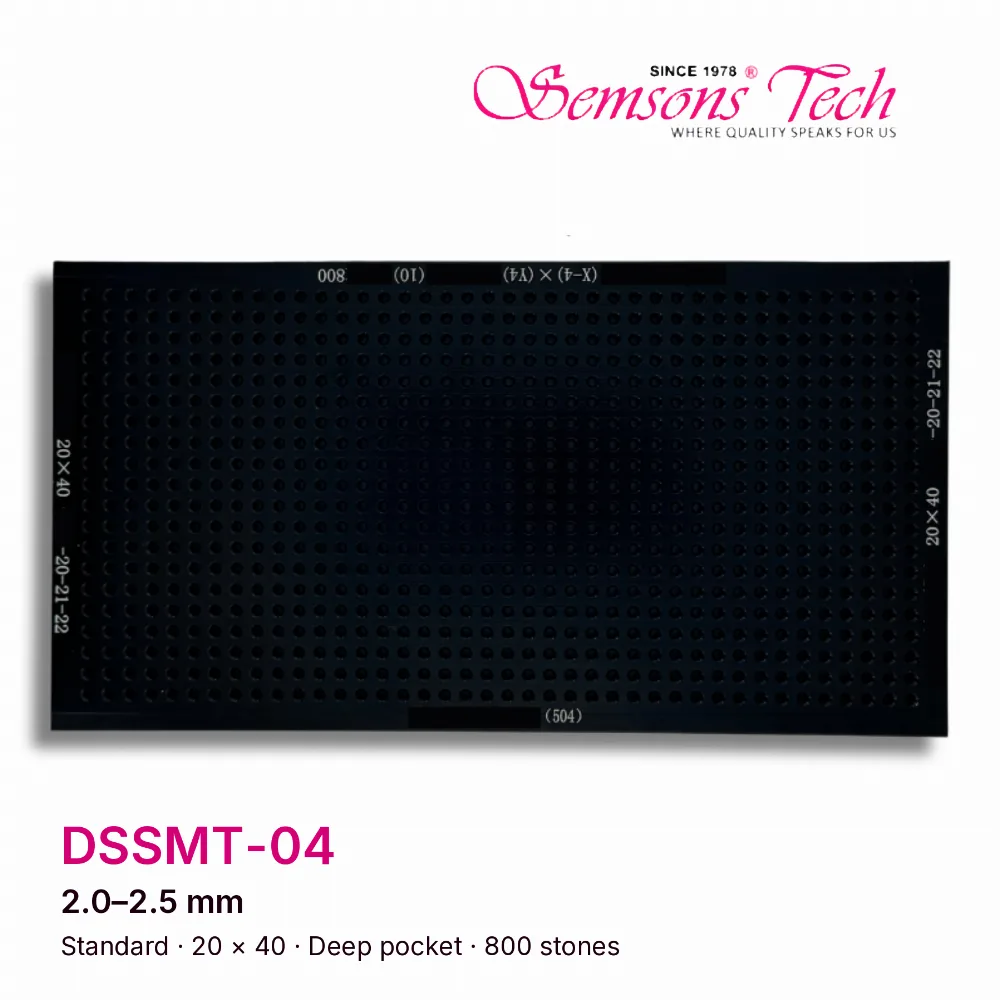

| DSSMT-04 | Standard, deep pocket | 2.0 – 2.5 mm | 20 × 40 | 800 | 504 |

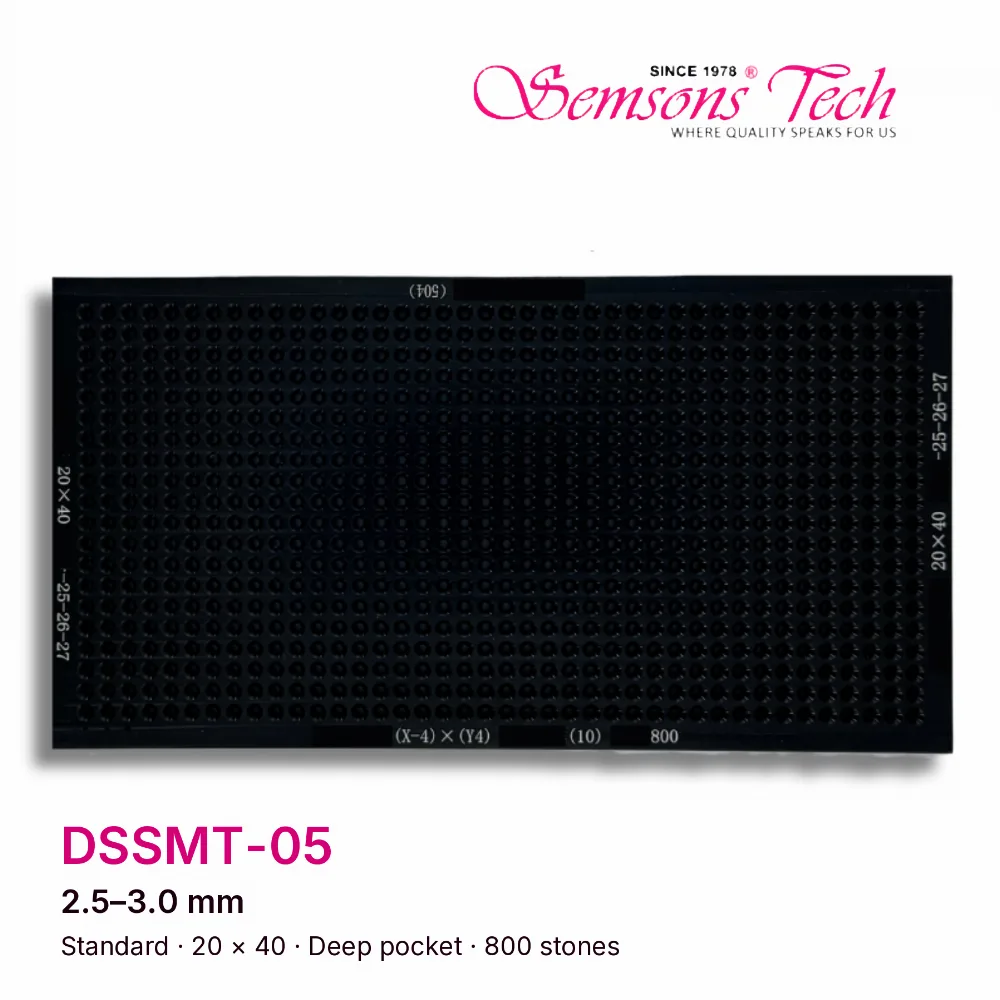

| DSSMT-05 | Standard, deep pocket | 2.5 – 3.0 mm | 20 × 40 | 800 | 504 |

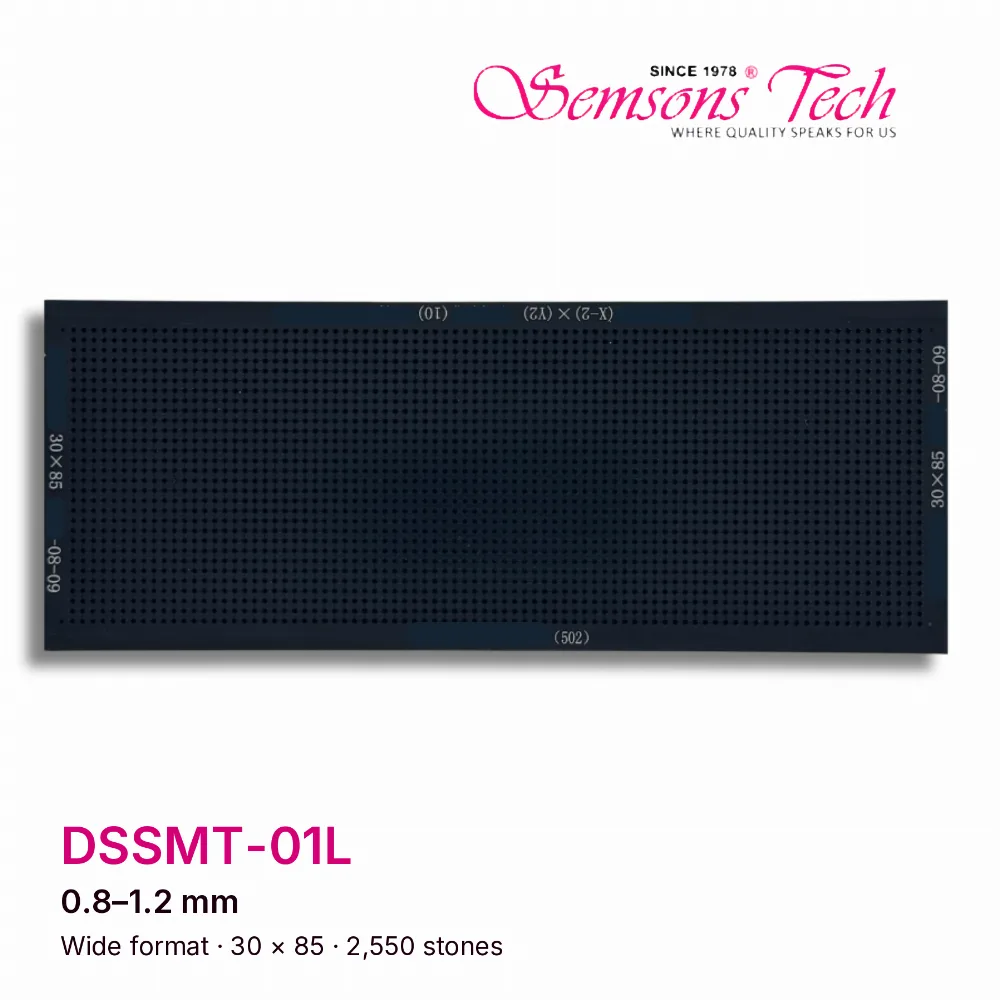

| DSSMT-01L | Wide | 0.8 – 1.2 mm | 30 × 85 | 2,550 | 502 / 502B |
| SSMWT-02 | Wide | 1.3 – 1.6 mm | 30 × 85 | 2,550 | 503 / 503B |
| SSMWT-03 | Wide | 1.7 – 1.9 mm | 30 × 85 | 2,550 | 503B |
| SSMWT-04 | Wide, deep pocket | 2.0 – 2.5 mm | 15 × 49 | 735 | 504 |
| SSMWT-05 | Wide, deep pocket | 2.5 – 3.0 mm | 15 × 49 | 735 | 504 |
- Each model is one tray. Each model is a separate line in the cart, so different models can go in one order.
- Standard and wide-format trays of the same row hold the same stone sizes. The difference is how many stones one fill takes and the shape of the tray.
- The 2.0 mm and larger trays have deeper pockets, so a bigger stone sits flat for the nozzle.
Specifications
| Parameter | Specification |
|---|---|
| Models | DSSMT-01, DSSMT-02, DSSMT-03, DSSMT-04, DSSMT-05, DSSMT-01L, SSMWT-02, SSMWT-03, SSMWT-04, SSMWT-05 |
| Stone range | 0.8 mm to 3.0 mm round stones |
| Standard grids | 40 × 80 (3,200 stones), 20 × 40 deep pocket (800 stones) |
| Wide-format grids | 30 × 85 (2,550 stones), 15 × 49 deep pocket (735 stones) |
| Stone types | Natural diamond, lab-grown diamond (CVD/HPHT), CZ, synthetic round stones |
| Markings on the tray | Grid, matching nozzle and stone-size number |
| Compatible machines | Semsons Tech X4 Pro Plus, Pro Mini and ST-HDSSM automatic wax setting machines |
| Sold as | One tray per unit |
| Dispatch | Same day, free delivery anywhere in India |
Care
- Empty the tray by turning it over onto a sorting pad. Do not sweep stones across the pockets.
- Blow out dust with clean, dry air.
- Store it flat and unstacked, and keep solvents off the pocket faces. A scored or dented pocket changes its depth, and the nozzle is set to that depth.
Ordering & Support
Not sure which tray your work needs? Send us your machine model and the stone size you run, and we will confirm the right tray and nozzle before dispatch. For a full set across all sizes, or trays for several machines, WhatsApp our wholesale desk.
Sales: WhatsApp +91 98216 12340 | Wholesale & bulk orders: WhatsApp +91 80823 38010
Semsons Tech - Where Quality Speaks For Us. Since 1978.
Specifications
| Diamond Size Range | 0.8 mm – 3.0 mm round stones, by tray model |
|---|---|
| Dispatch | Same day, free delivery anywhere in India |
| Sold As | Individual tray (single unit) |
| Sorting Grid | 40 × 80 or 20 × 40 deep pocket (standard); 30 × 85 or 15 × 49 deep pocket (wide) |
| Stone Types Supported | Natural diamond, lab-grown diamond (CVD/HPHT), CZ, synthetic rounds |
| Total Stone Capacity | 3,200 or 800 stones (standard); 2,550 or 735 stones (wide) |
Answers
Questions about this product
Which tray do I need?
Measure the round stones you are setting and find that size in the table above. Choose the standard or wide-format model on that row. The same row gives the nozzle it works with.
Standard or wide format?
Both hold the same stone sizes. A standard tray takes more stones per fill: 3,200 against 2,550 up to 1.9 mm, and 800 against 735 from 2.0 mm. Choose the wide format if its shape suits your machine layout or the way your operator loads stones.
Will it fit my machine?
Every model fits the Semsons Tech X4 Pro Plus, Pro Mini and ST-HDSSM automatic wax setting machines.
Can I put a different stone size in a tray?
Stay inside the size band of the model. A stone that is too small sits too deep for the nozzle to reach, and one that is too large sits proud of the pocket and is knocked aside. Both leave gaps in the wax.
What does the number engraved on the tray mean?
It marks the stone size the tray is sorted for, so the operator can check the tray before loading it. You receive one tray per model ordered.
How many trays should I keep?
One for each stone size you run, plus a spare of the size you run most. On a double-station machine a second tray lets you fill one while the other is on the machine.
Is the price the same for every model?
Yes. All ten models are the same price, and the price shown includes 18% GST.
How soon will it reach me?
Orders are dispatched the same day, and delivery is free anywhere in India.
